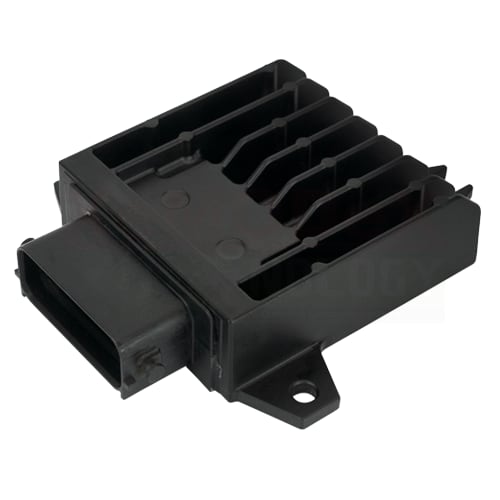

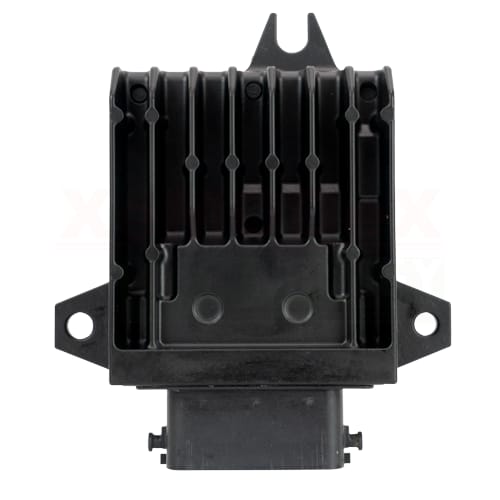

Transmission Control Module (TCM) For Mazda

Code: MZ.1060.L32E189E1B.10.20

Repair Service

Turnaround Time:3-4 Business Days
Services Type:Repair Service
OEM Part Number:L32E189E1B
XeMODeX Part Number:MZ.1060.L32E189E1B.10.20
Reload Required?No. Plug and Play Installation
Warranty:Lifetime Limited Warranty

XeMODeX Price:  $369.00

In Stock

Application

Application

2006 – 2013 Mazda 3
2006 - 2013Mazda Axela
2008 – 2015Mazda 5

What you need to know (please read before ordering)

What you need to know (please read before ordering)

This is a Repair Service for your existing module. You will need to remove and send your module to us for repair using the shipping labels provided to you.

The order will be processed during our regular business hours (Mon-Fri 8:30 – 5:00 EST). After processing your order, we will email shipping labels and shipping instructions. If you do not see shipping labels within 1 hour of submitting your order (during business hours) please first check your junk/spam folders. If you still do not see the labels, please contact us at 1-888-712-2525

Features:

Plug & Play: The software and settings will not be modified, making this module plug and play. No software reload, coding or calibration is required after installation.

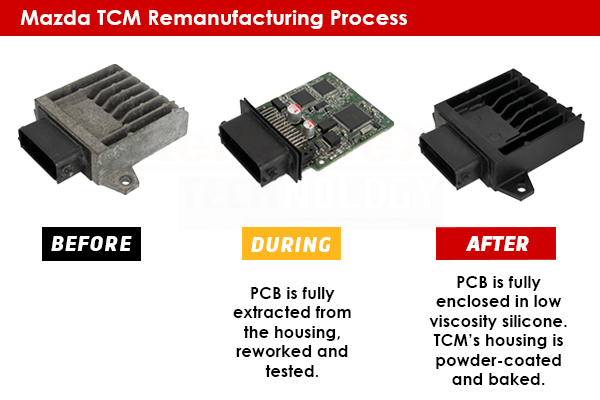

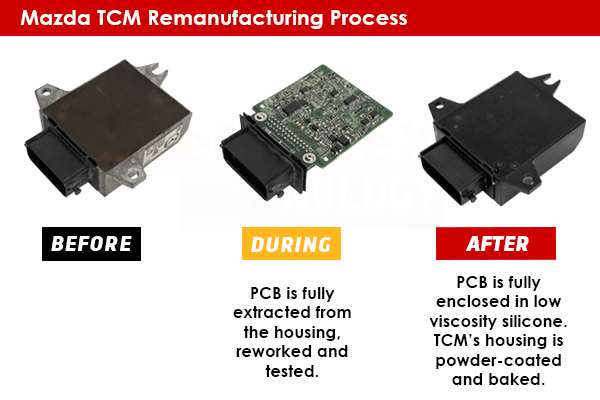

Completely Reworked PCB: During the TCM remanufacturing the internal circuit board is completely removed from the housing and is tested at the component level. Any known prone-to-failure parts that are close to the maximum tolerance are automatically replaced.

Quality Tested: All TCMs undergo rigorous tests on our specialized custom-built CAN-bus driven testbed. All functions, shift performance, DTCs, and software are checked and verified for proper operation.

PCB Encapsulation: Once the repair and testing process is completed the PCB is fully encapsulated in a special, low viscosity silicone coating that provides maximum protection against heat, vibration, and outside elements.

Powder Coating: Mazda’s TCM housing is made from cast-aluminum that oxidizes very heavy over time. To prevent this from happening all housings are sand-blasted, powder-coated, and baked in the oven.

Turnaround Time: The entire TCM remanufacturing process takes between 3 to 4 days. This is because it takes 24 to 30 hours to remove the existing conformal coating and fully clean the circuit board and another 24 hours for the new encapsulating to fully cure. In addition to PCB repair time and powder-coating process.

Lifetime Limited Warranty: This module comes with our Lifetime Limited Warranty. Please see here for more information.

Reference Numbers

Reference Numbers

LF8M-18-9E1H | LF8M-18-9E1A | LF8M-18-9E1C | LF8M-18-9E1D | LF8M-18-9E1E | LF8M-18-9E1F | LF8M-18-9E1G | LFJS-18-9E1C | L39C189E1B | L39C189E1C | L39C189E1D | L39C-18-9E1B | L39C-18-9E1D | L39C-18-9E1C | L39C-18-9E1A | L39C189E1A | L39C 18 9E1C | L39C 18 9E1A | L39C 18 9E1B | L39C 18 9E1D | L39C 18 9E1E | L32E189E1B L32E189E1C L32E189E1D | L34T189E1A | L34T189E1B | L34T189E1C | L34T189E1D | L34T189E1E | L34T189E1F | L39C-18-9E1E | L39C-18-9E1B | L39C-18-9E1C | L39C-18-9E1D | L5E4 18 9E1A | L5E4189E1A | L5E4189E1E | L5E4189E1B | L5E4189E1C | L5E4189E1H | L5E4189E1D | L5F8189E1A | L5F8189E1B | L5F8189E1C | LFJE189E1E LFJE189E1A | LFJE189E1B | LFJE189E1C | LFJE189E1D | LFJE189E1H | LFS3-18-9E1A | LFS3 18 9E1A | LFS3189E1A | G1T00473H | LFS3189E1 | LFS3189E1A | LFS3189E1B | LFS3189E1C

Common Failure Symptoms

Common Failure Symptoms

• Harsh shifting to 3rd, 4th gear or reverse
• Transmission stays in 3rd gear (Limp-home mode)

Common trouble codes:

• U0101, U0100 – Lost communication with TCM
• P0753 – Shift Solenoid A Malfunction
• P0758 – Shift Solenoid B Malfunction
• P0763 – Shift Solenoid C Malfunction

How This Service Works

How This Service Works

Step 1: Purchase our service online or over the phone.
Step 2: After processing your order, we will email you pre-paid shipping labels.
Step 3: Send us your old defective unit by dropping off the package to any UPS location or call UPS to schedule a pick- up.
Step 4: We will inspect and repair your old module.
Step 5: We will send you back the repaired module the same day (unless otherwise stated).
Step 6: You install the unit back into your vehicle.

For more detailed instructions, please see here.
