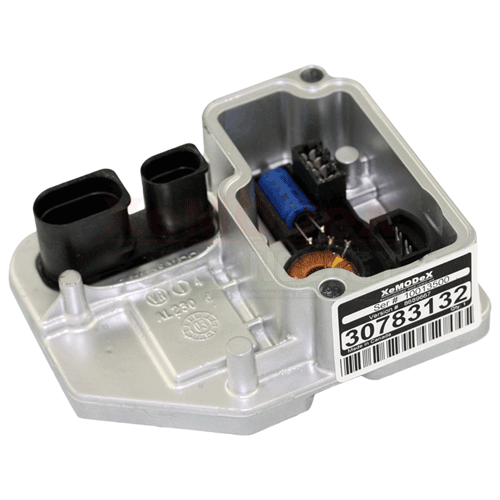

Differential Electronic Module For Volvo

Code: VO.1040.86001749.10.20-RS

Repair Service

MSRP: $1754 ( Save 63% )
Services Type:Repair Service
Turnaround Time:Same Day
XeMODeX Part Number:VO.1040.86001749.10.20
Reload Required?No. Plug & Play
Warranty:Lifetime Limited Warranty

XeMODeX Price:  $799.00

In Stock

Application

Application

2005 – 2011 VolvoS40 AWD
2003 – 2010 VolvoS60 AWD
2004 – 2013 VolvoS80 AWD
2005 – 2011 VolvoV50 AWD
2003 – 2010 VolvoV70 AWD
2010 – 2013 VolvoXC60 AWD
2003 – 2010 VolvoXC70 AWD
2003 – 2010 VolvoXC90 AWD

What you need to know (please read before ordering)

What you need to know (please read before ordering)

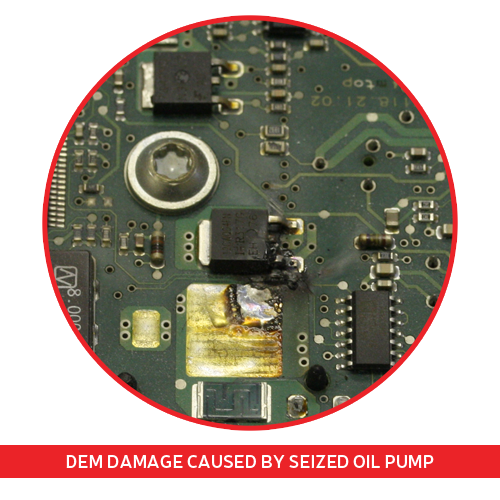

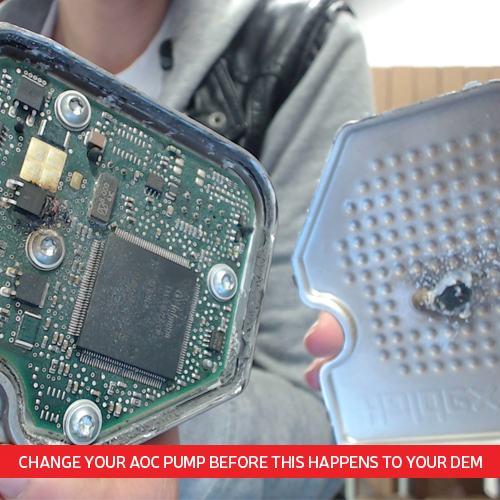

Important: We strongly recommend that you replace the AOC feed pump, filter, and oil prior to installing the remanufactured DEM. A clogged AOC filter will over-current the pump and that will short internally, and subsequently destroy, your newly refurbished DEM.

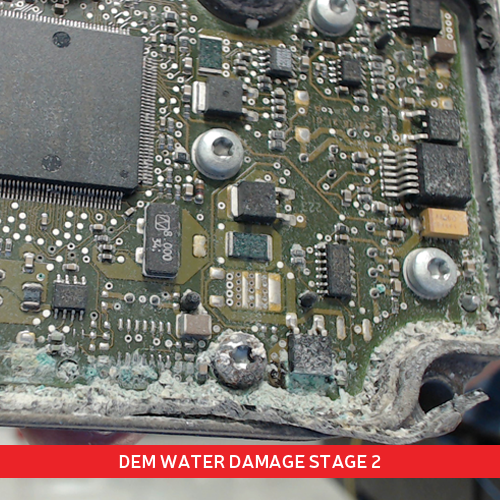

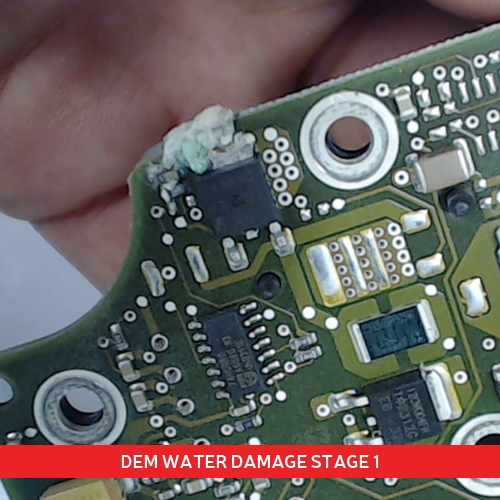

Please Note: 2003 and newer DEMs suffer from a variety of failures from communication issues to total network shutdown. They are also prone to water damage, resulting in an even broader range of failures. In some extreme cases a regular repair may not be sufficient, and extra costs may be incurred in order to get a good working module back to you. This will only be done if a repair isn’t possible, and you will be notified of this before we proceed with other options. Please contact our sales department if you’d like more information.

Please Note: In 2005 and newer models it is also possible for the Rear Electronic Module (REM) to cut off power supply to the DEM. We recommend that you consult our DEM Diagnostic Flow Charts to correctly diagnose the failure.

This is a Repair Service of your existing module. You will need to remove and send your module to us for repair using the shipping labels provided to you.

The order will be processed during our regular business hours (Mon-Fri 8:30 – 5:00 EST). After processing your order, we will email shipping labels and shipping instructions. If you don’t see shipping labels within 1 hour of submitting your order (during business hours) please first check your junk/spam folders. If you still don’t see the labels, please contact us at 1-888-712-2525

Features:

Plug & Play: The software and settings will not be modified, making this module plug and play. No software reload or calibration is required after installation.

Quick Turnaround: Your module will be tested, repaired, tested again, and sent back to you in the same day (unless otherwise noted).

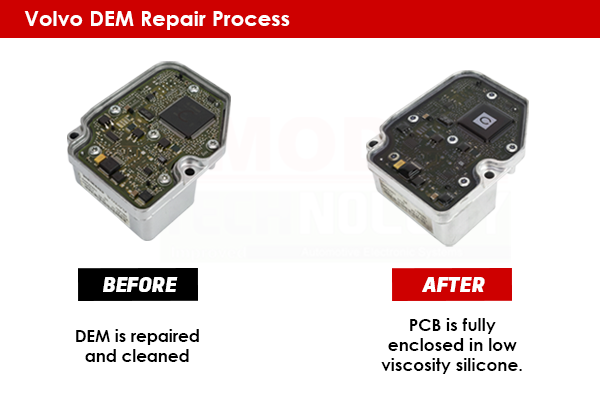

Water-Proof Housing: The DEM housing is permanently sealed with high grade sealant to help prevent any future water intrusion.

Protective Circuit Board Coating: The internal circuit board is coated with conformal coating for additional protection.

Completely reworked PCB: All internal circuit boards are tested at the component level. Any known prone-to-failure parts that are close to the maximum tolerance are automatically replaced.

Quality Tested: All our Volvo DEMs undergo rigorous tests on our specialized custom built CAN-bus driven test bed. All functions, DTCs, and software are checked and verified for proper operation.

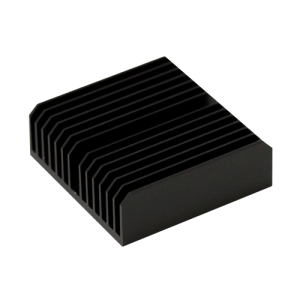

Heat Shield is available: To prevent the DEM from heat damage from the nearby exhaust pipe, we recommend that you purchase the optional heat shield.

Lifetime Limited Warranty: This module comes with our Lifetime Limited Warranty. Please see here for more information.

Reference Numbers

Reference Numbers

30713164 | 30759002 | 30783060 | 30783061 | 30783132 | 30783265 | 30787954 | 36001157 | 36001158 | 36001159 | 36001160 | 36001749 | 36001750 | 36001751 | 36002520 | 8675233

Common Failure Symptoms

Common Failure Symptoms

No All Wheel Drive
Complete high speed network failure

How This Service Works

How This Service Works

Step 1: Purchase our repair service online or over the phone.
Step 2: After processing your order, we will email you pre-paid shipping labels.
Step 3: Send us your old defective unit by dropping off the package to any UPS location, or call UPS to schedule a pick up.
Step 4: We will inspect and repair your old module.
Step 5: We will send you back the repaired module the same day (unless otherwise stated).
Step 6: You install the unit back into your vehicle.

For more detailed instructions, please see here.

FAQ

FAQ

I have been told by my Repair Shop of the importance of replacing the pump and filter when replacing the DEM
Yes we strongly recommend that the pump and filter are replaced whenever the Differential Electronic Module (DEM) is remanufactured or replaced. It is very common for the filter to clog up and overwork the pump. The pump will then short circuit and destroys your newly rebuilt DEM instantly. This is why we are offering these parts in addition to the DEM repair. Please refer to our DEM diagnostic flow chart where you can find detailed information on how to test the AWD pump for proper operation.

What’s the advantage to purchasing the cover kit you carry for the Volvo DEMs?
The DEM is exposed to heat and water due to the location of the unit directly under the car. To avoid having to replace this unit or sending it in for repair, we recommend that you protect this important electrical component with a custom protective shield by IPD.
