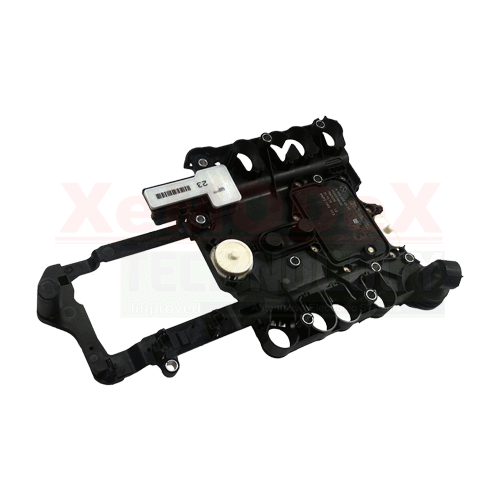

TCM Module For Mercedes-Benz 722.9 7G-Tronic Transmission

Code: MB.1060.7GTRONIC.10.20

Repair Service

Service Type: Repair Service
Turnaround Time:Same Day
XeMODeX Part Number:MB.1060.7GTRONIC.10.20
Reload Required?No. Plug and Play Installation
Warranty:1 Year Limited Warranty

XeMODeX Price:  $549.00

In Stock

Application

Application

For Mercedes-Benz with 722.9 7G-Tronic Transmission
• CLS350
• CLS500
• E350
• G-Class
• M-Class
• R-Class
• SLK-Class
• And more

What you need to know (please read before ordering)

What you need to know (please read before ordering)

Important: Please separate the TCM from the valve body prior to shipping the part to us. The valve body is heavy and there is a high risk of TCM damage during shipping. Additional shipping fees will apply when we receive the valve body.

This is a Repair service of your existing module. You will need to remove and send your module to us for repair using the shipping labels provided to you.

The order will be processed during our regular business hours (Mon-Fri 8:30 – 5:00 EST). After processing your order, we will email shipping labels and shipping instructions. If you don’t see shipping labels within 1 hour of submitting your order (during business hours) please first check your junk/spam folders. If you still don’t see the labels, please contact us at 1-888-712-2525

Features:

Plug & Play: The software and settings will not be modified, making this module plug and play. No software reload or calibration is required after installation.

Quick Turnaround: Your module will be tested, repaired, tested again, and sent back to you in the same day (unless otherwise noted).

1 Year Limited Warranty: This module comes with our 1 Year Limited Warranty. Please see here for more information.

Reference Numbers

Reference Numbers

A0335457332 | A0034460310 | A0335456732 | A0335456632 | 000 270 26 00 80

Common Failure Symptoms

Common Failure Symptoms

Turbine Speed Sensor – Y3/8N1
• 0715 – Input/Turbine Speed Sensor Circuit Malfunction
• 0716 – Input/Turbine Speed Sensor Circuit Range/Performance
• 0717 – The signal from component Y3/8N1 (Turbine Speed Sensor (VGS)) is not available
• 0718 – The signal from component Y3/8N1 (Turbine Speed Sensor (VGS)) is defective
• P2204 – The signal from component Y3/8N1 (Turbine speed sensor (VGS)) is not available
• P2205 – The signal from component Y3/8N1 (Turbine Speed Sensor (VGS)) is defective

Internal Speed Sensor – Y3/8N2
• 2766 – Excessive RPM’s have occurred at component Y3/8N2 (Internal speed sensor (VGS))
• 2767 – The signal from component Y3/8N2 (Internal speed sensor (VGS)) is not available
• 2768 – Component Y3/8N2 (Internal speed sensor (VGS)) is defective
• P2200 – Component Y3/8N2(Internal Speed Sensor (VGS)) is not available
• P2201 – The signal from component Y3/8n2 (Internal speed sensor (VGS)) is defective

Output Speed Sensor – Y3/8N3
• 0720 – Output Speed Sensor Circuit Malfunction
• 0721 – Output Speed Sensor Range/Performance
• 0722 – The signal from component Y3/8N3 (Output Speed Sensor (VGS)) is not available
• 0723 – The signal from component Y3/8N3 (Output Speed Sensor (VGS)) is not Intermittent
• P2206 – The signal from component Y3/8N3 (Output Speed Sensor (VGS)) is not available
• P2207 – The value of component Y3/8N3 (Output Speed Sensor) is implausible

How This Service Works

How This Service Works

Step 1: Purchase our repair service online or over the phone.
Step 2: After processing your order, we will email you pre-paid shipping labels.
Step 3: Send us your old defective unit by dropping off the package to any UPS location, or call UPS to schedule a pick up.
Step 4: We will inspect and repair your old module.
Step 5: We will send you back the repaired module the same day (unless otherwise stated).
Step 6: You install the unit back into your vehicle.

For more detailed instructions, please see here.
